DIN Rail Support for C25XP Breakout Board
DIN Rail Support for C25XP Breakout Board
Verfügbarkeit für Abholungen konnte nicht geladen werden
DIN Rail Support for C25XP Breakout Board

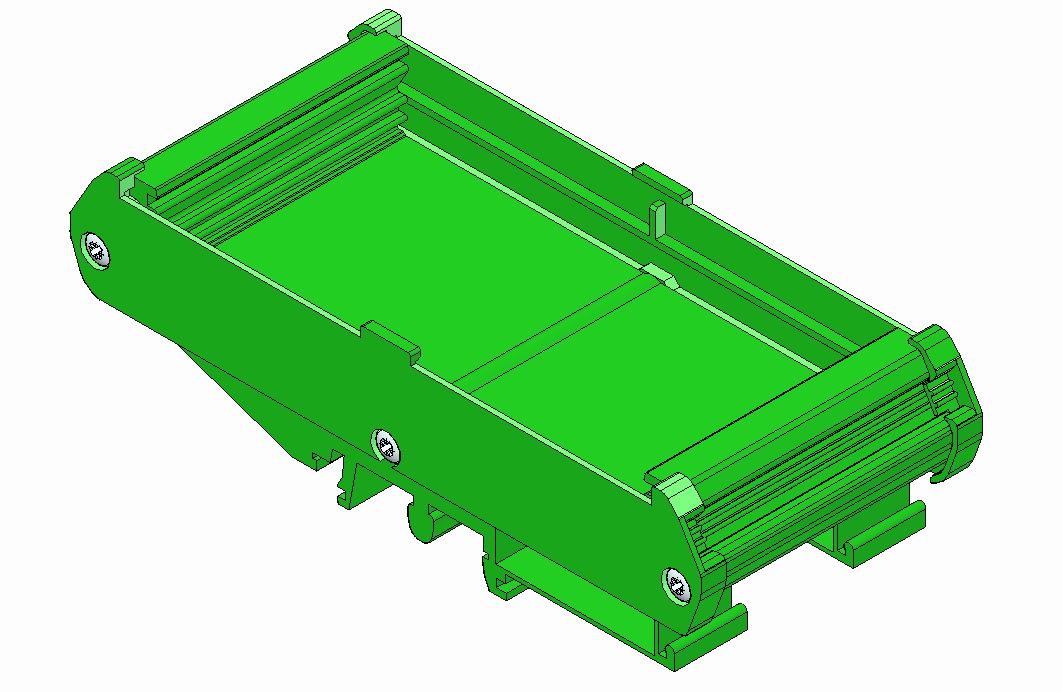

Mount the C25XP breakout board cleanly on standard 35 mm DIN rail inside your CNC control cabinet. The C25XP screws onto this support, the support clips onto the rail, and because the Ethernet SmoothStepper ESS plugs directly into the C25XP, this one support carries the whole ESS + C25XP assembly.
Which DIN rail support do you need?
This one: DIN Rail Support for C25XP
Get this support if you have the C25XP breakout board or the ESS + C25XP bundle. The ESS mounts on top of the C25XP, so the C25XP is the board that needs to sit on the rail.
- C25XP purchased on its own
- ESS + C25XP CNC Control Bundle
- An ESS you already have that is plugged into a C25XP
DIN Rail Support for Ethernet SmoothStepper ESS
Get the ESS support only if you are running the ESS by itself with no C25XP underneath it (for example, with ribbon cables to a different breakout board). It is sized for the bare ESS and does not fit the C25XP.
View DIN Rail Support for ESSWhat this DIN rail support does
This is a mechanical mounting support made for the C25XP multifunction board. The C25XP fastens to the support, and the support clips onto standard 35 mm top-hat (TS35) DIN rail, so the board stays secured and lined up with the rest of your DIN-mounted electronics instead of being screwed loose to the back panel.
Important: This product does not add electrical features to the C25XP or the Ethernet SmoothStepper. It does not add inputs, outputs, relays, spindle control, safety monitoring, or screw terminals. It is strictly a mounting support for a cleaner control cabinet installation.
Best used for
- Mounting the C25XP inside a CNC control cabinet or electrical enclosure
- ESS + C25XP control box builds on DIN rail
- Mach3 and Mach4 control panels with DIN-mounted drivers, power supplies, and relays
- CNC router, mill, lathe, and plasma table retrofits
- Organized panels with serviceable wiring layouts
Why use DIN rail mounting?
- Keeps the C25XP and ESS secured inside the enclosure
- Lines the breakout board up with your other DIN-mounted components
- Makes the control cabinet look cleaner and more professional
- Makes future service or upgrades easier: unclip, swap, clip back on
- No drilling or standoffs in the back panel
Where this fits in your CNC control system
| Part | What it does |
|---|---|
| Ethernet SmoothStepper ESS | Motion controller for Mach3 and Mach4 CNC systems; plugs directly into the C25XP |
| C25XP Breakout Board | Wiring/interface board that adds screw terminals, relays, spindle control, and safety features for the ESS |
| DIN Rail Support for C25XP | Mechanical support that mounts the C25XP (with the ESS on it) onto 35 mm DIN rail inside the control cabinet |
Important compatibility note
- This is a mounting support for the C25XP breakout board. It fits the C25XP, not the bare ESS.
- If your ESS is plugged into a C25XP (including the ESS + C25XP bundle), this is the only DIN rail support you need. You do not also need the ESS support.
- Fits standard 35 mm top-hat (TS35) DIN rail. DIN rail is sold separately.
- The C25XP and the Ethernet SmoothStepper ESS are sold separately unless purchased as part of a bundle.
- This support does not replace the ESS, C25XP, motor drivers, power supplies, relays, switches, or CNC control software.
Build a cleaner ESS + C25XP control cabinet
Add this DIN rail support when mounting the C25XP inside a CNC control enclosure. It is a simple accessory, but it is the one that keeps the C25XP and the ESS riding on it secure, organized, and easy to service.
