4'x8' CNC Machine (blackFoot)

4'x8' CNC Machine (blackFoot)

Regular price $4,500.00 USD
Regular price Sale price $4,500.00 USD
Sale Sold out
Shipping calculated at checkout.
Title
Quantity

The blackFoot is no longer sold as a kit or assembled.

For a 4'x8' build, see the greenBull v2 4'x8' digital plans. We still stock the electronics and mechanical parts for existing blackFoot machines. This page is kept for reference.

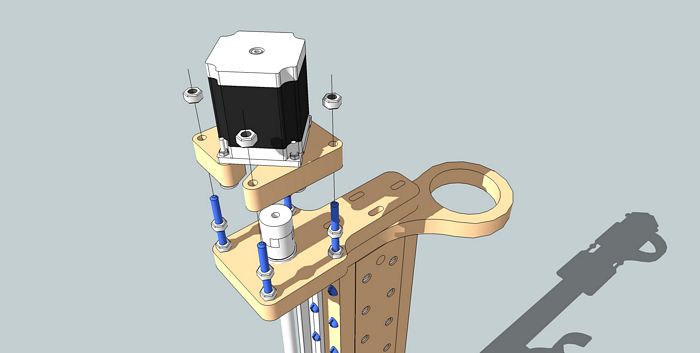

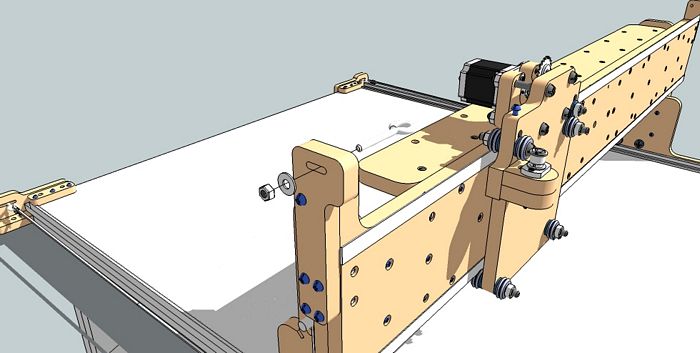

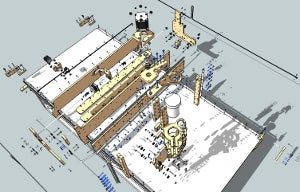

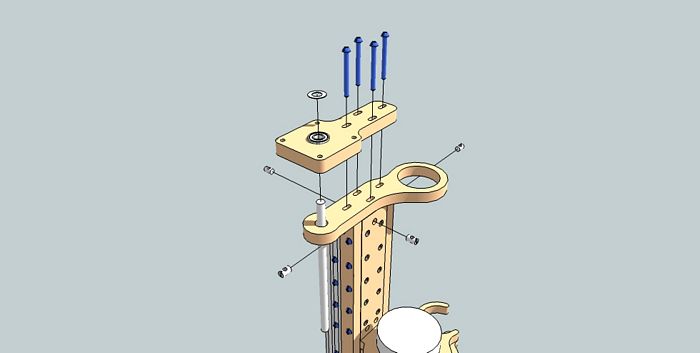

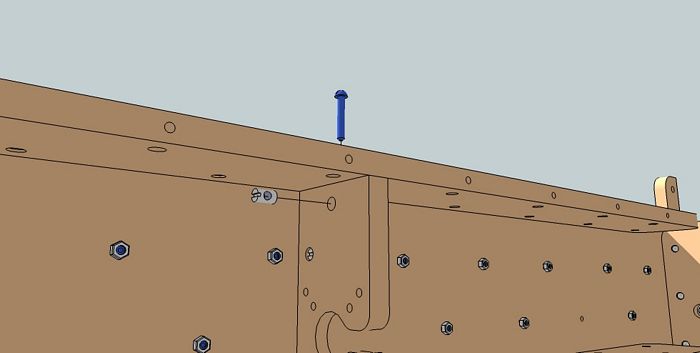

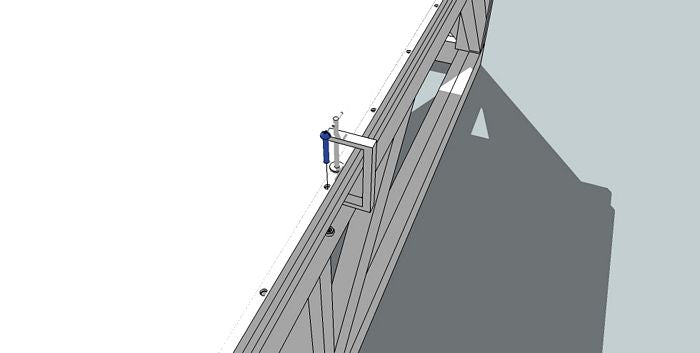

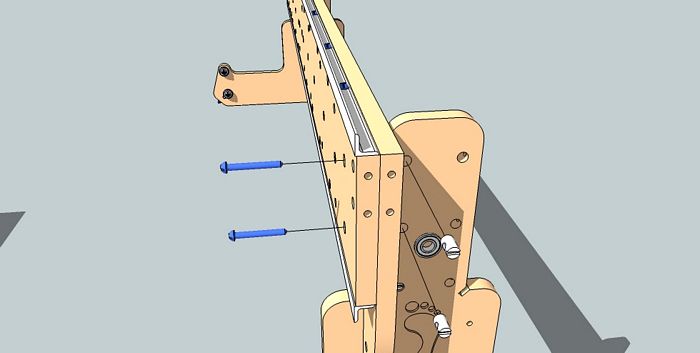

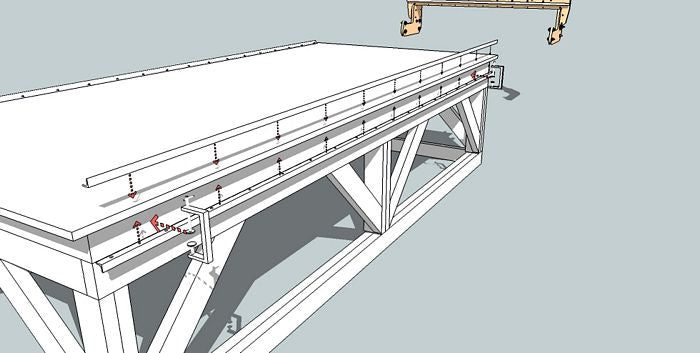

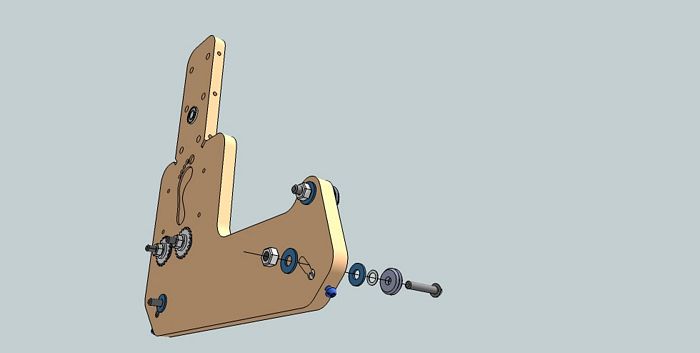

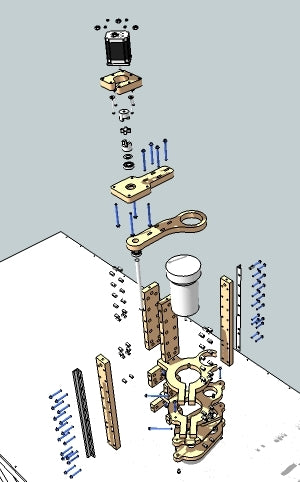

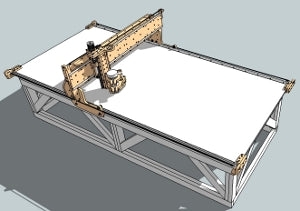

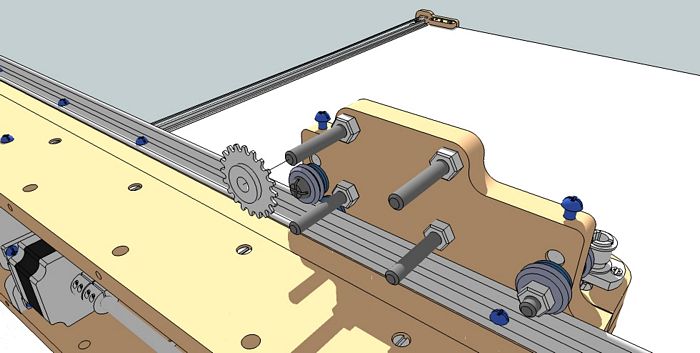

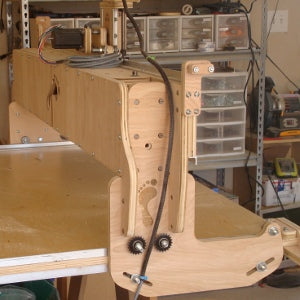

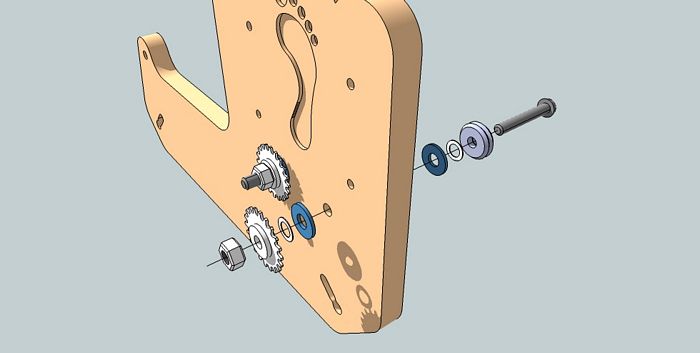

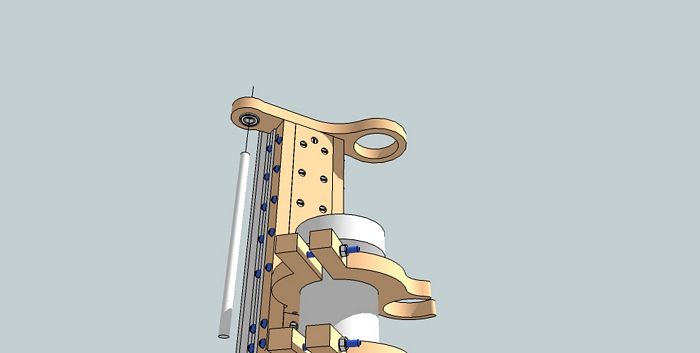

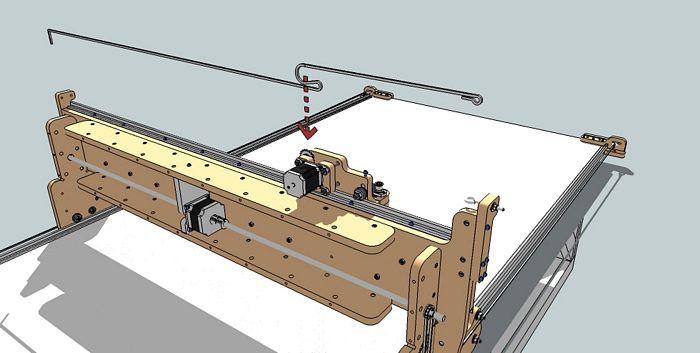

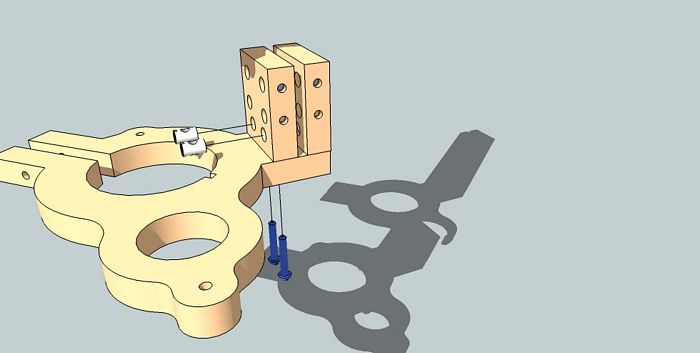

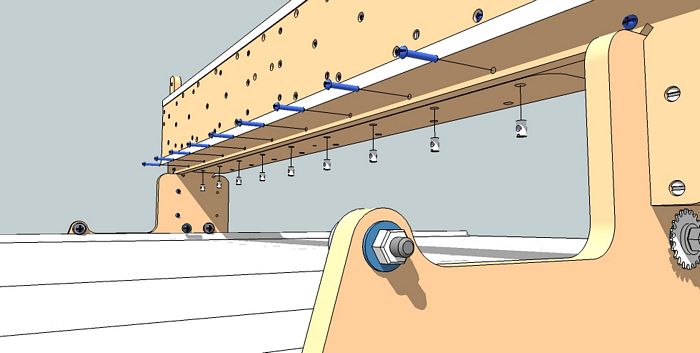

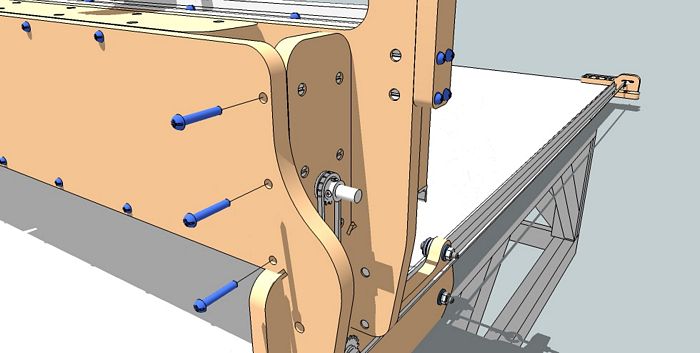

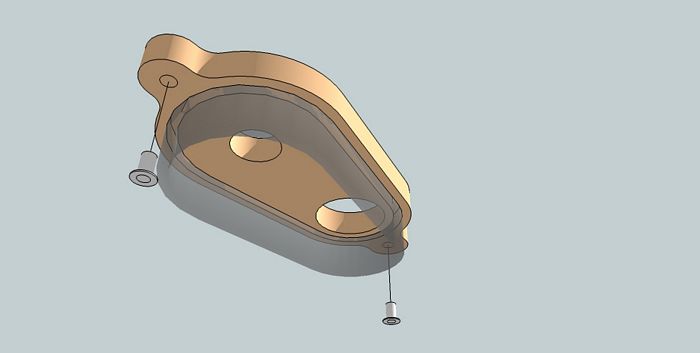

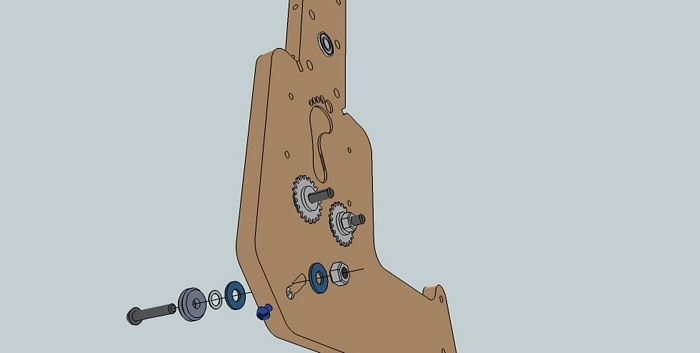

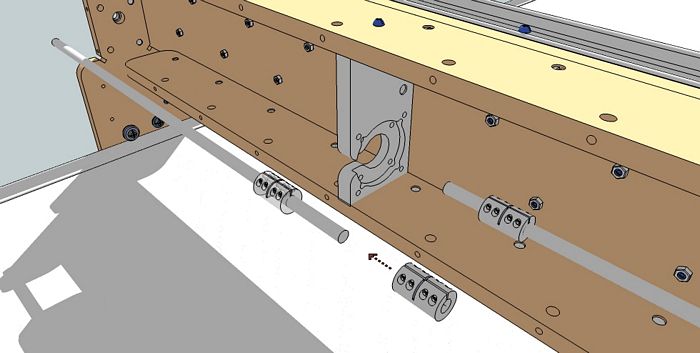

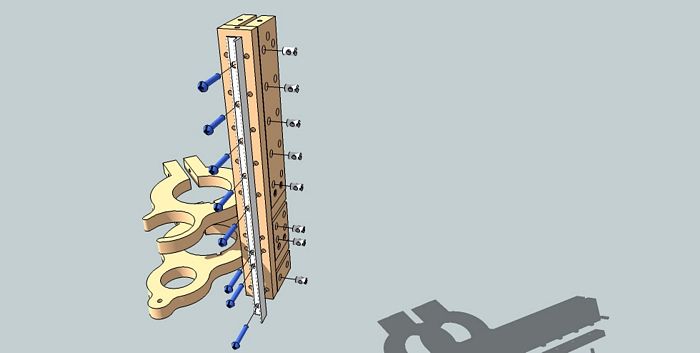

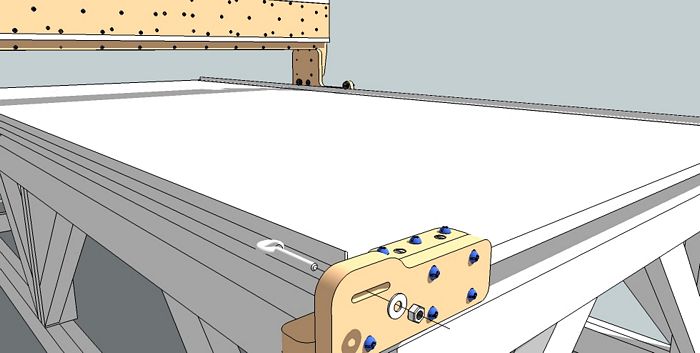

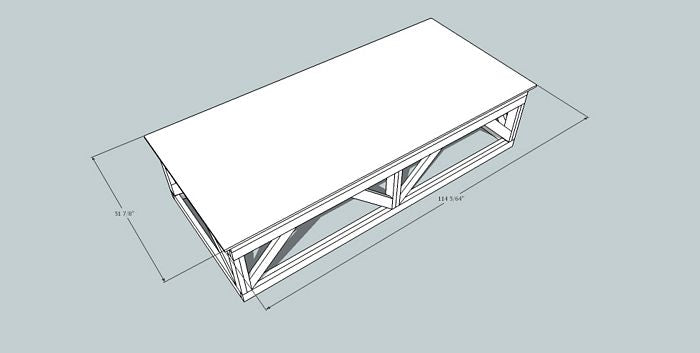

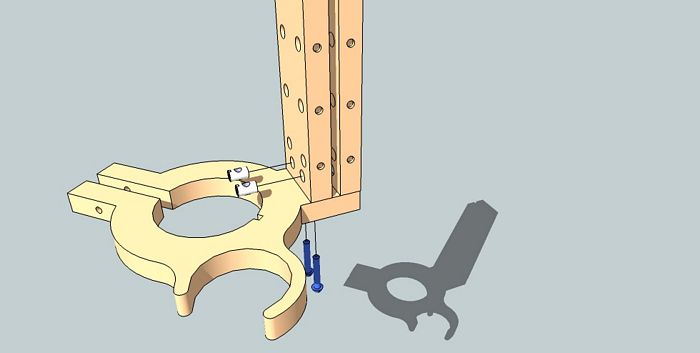

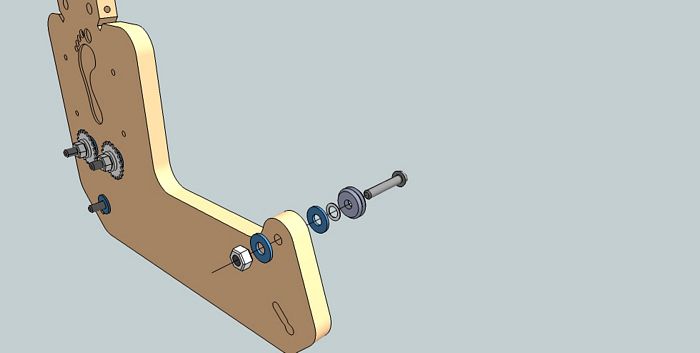

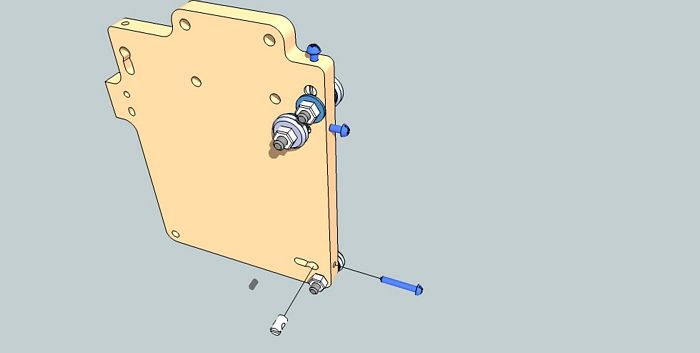

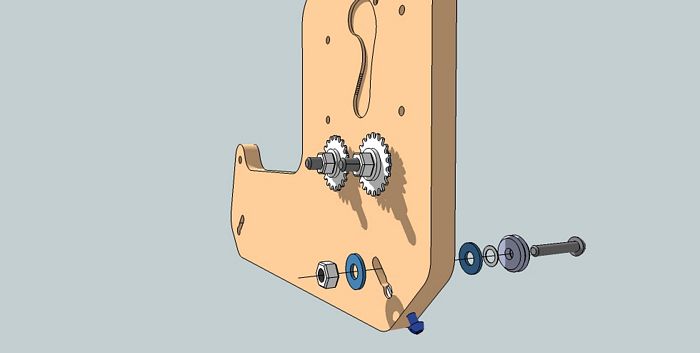

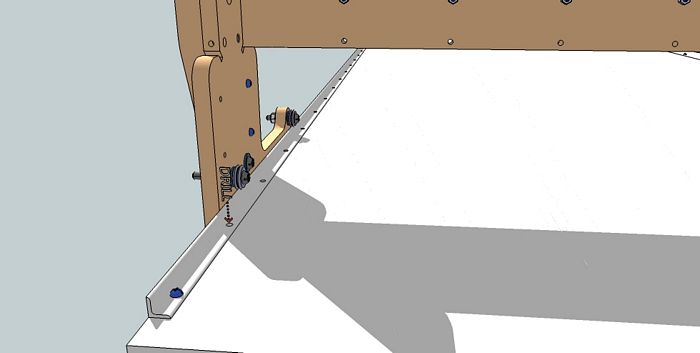

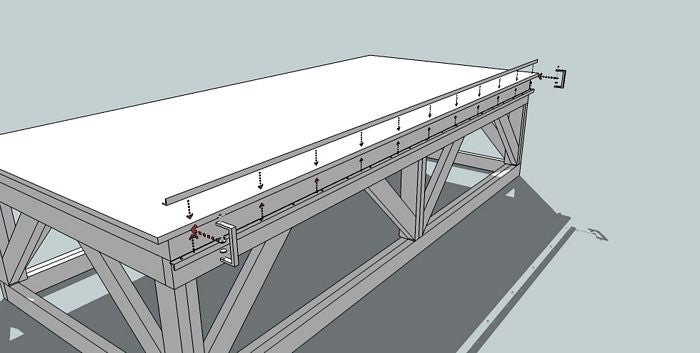

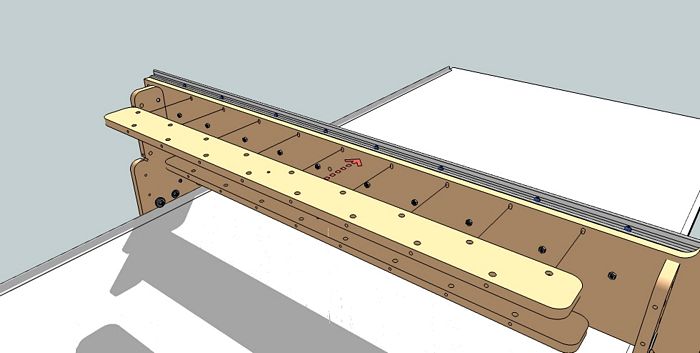

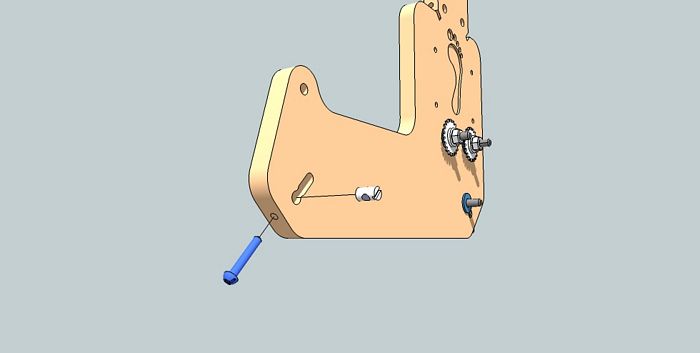

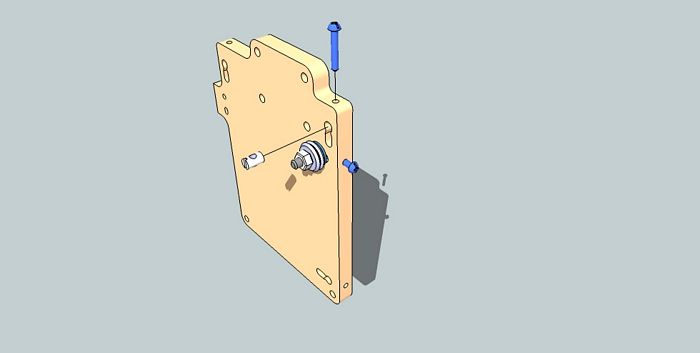

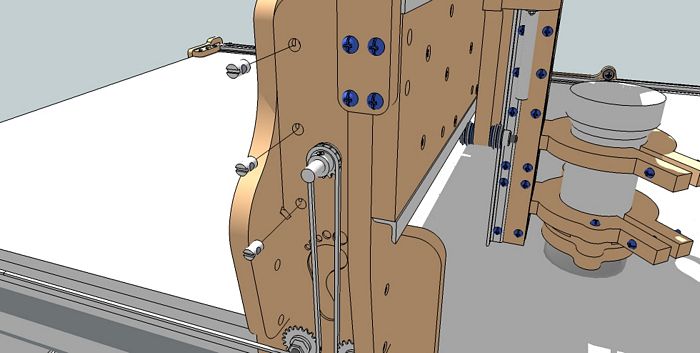

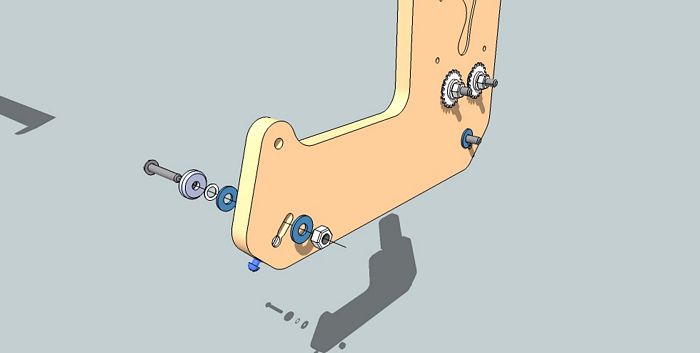

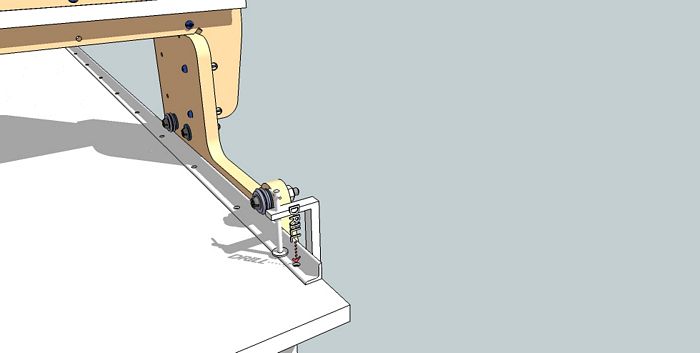

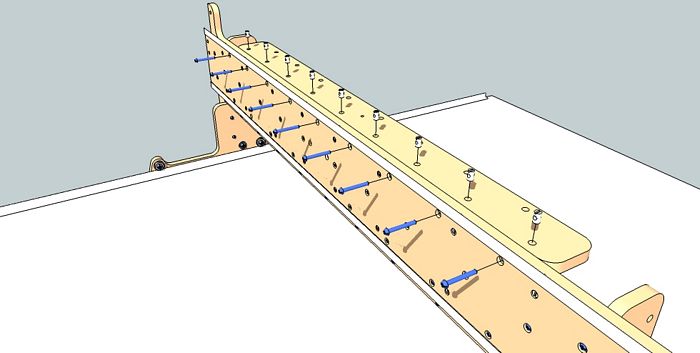

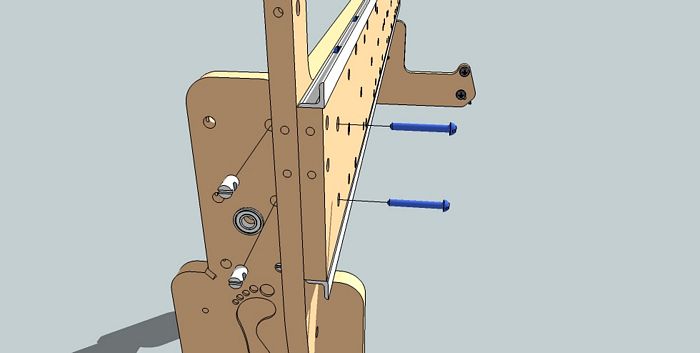

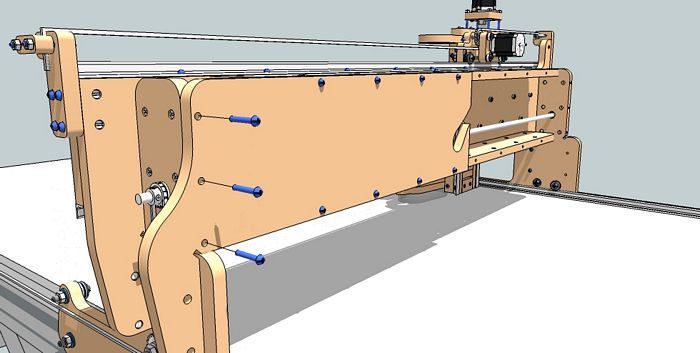

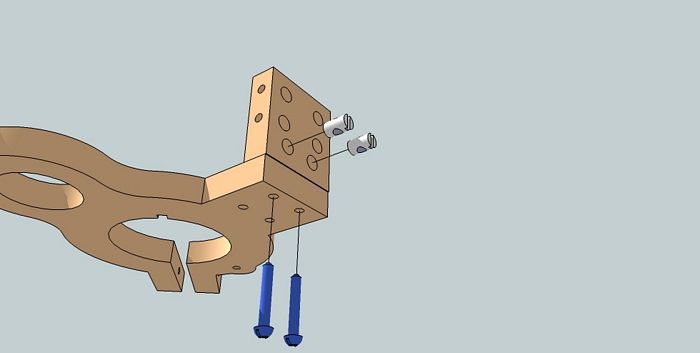

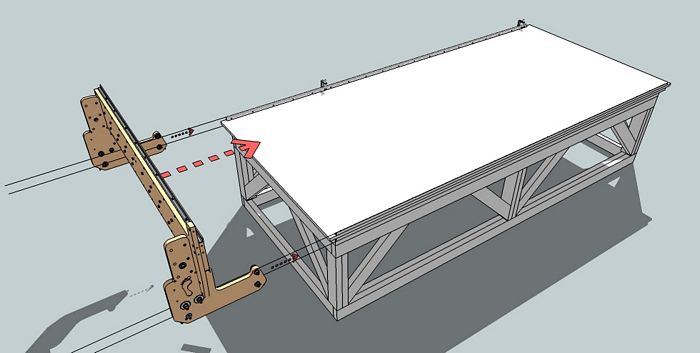

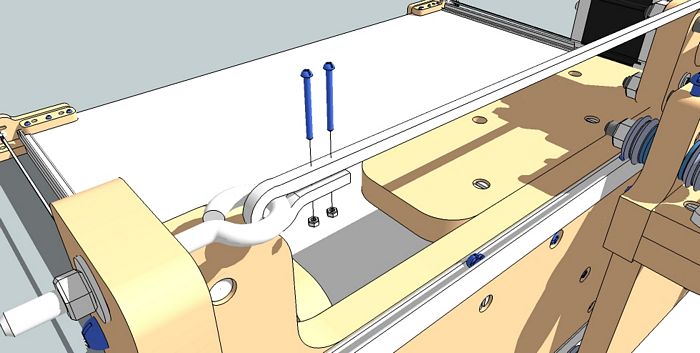

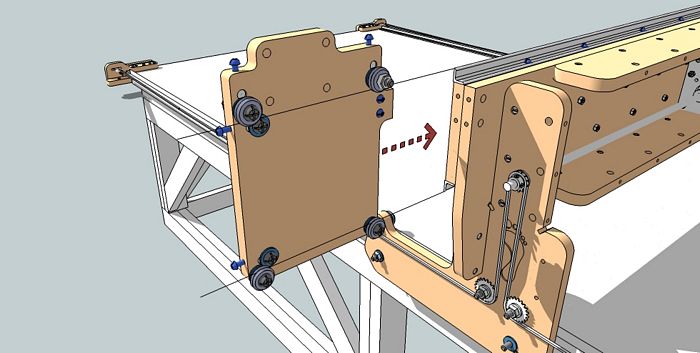

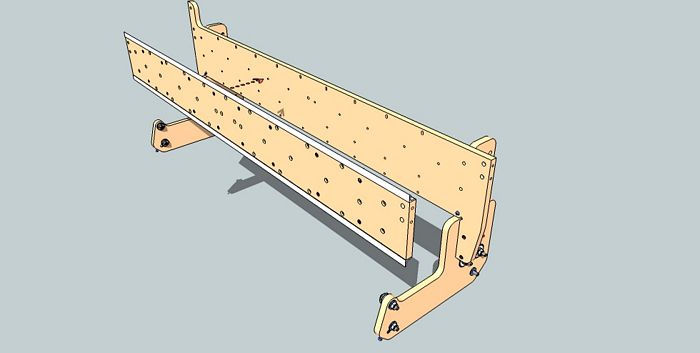

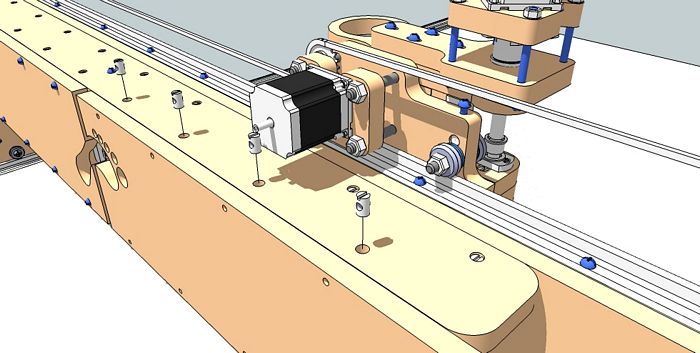

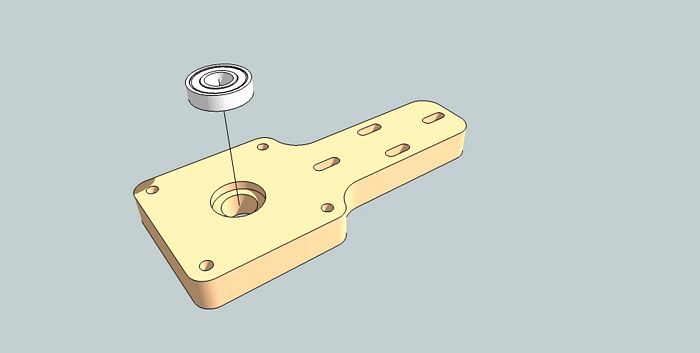

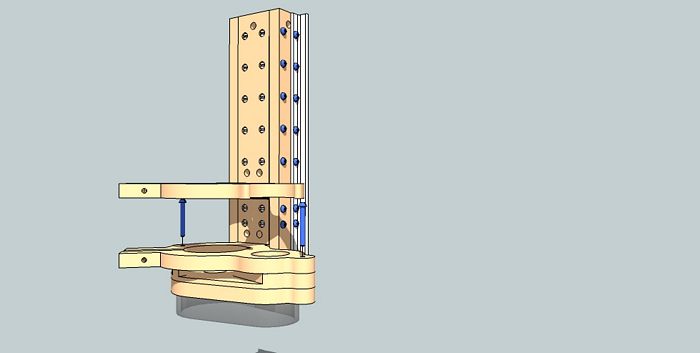

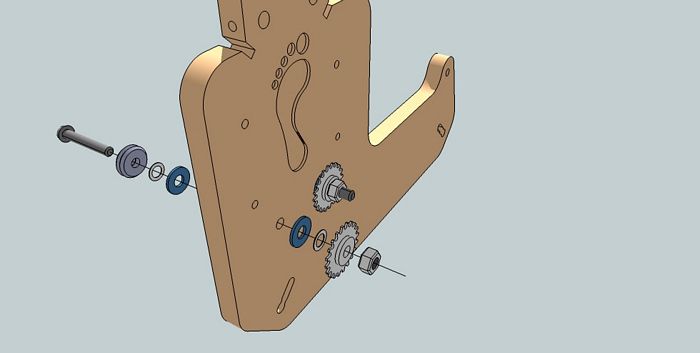

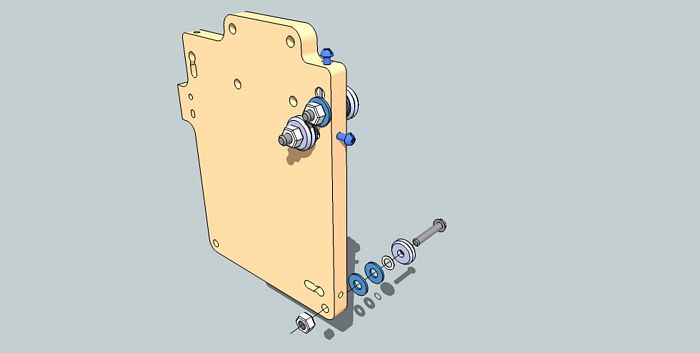

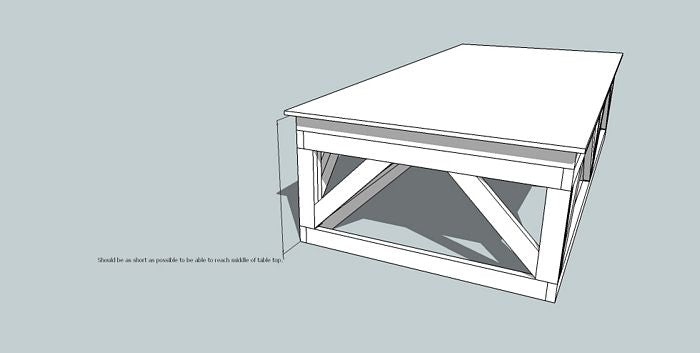

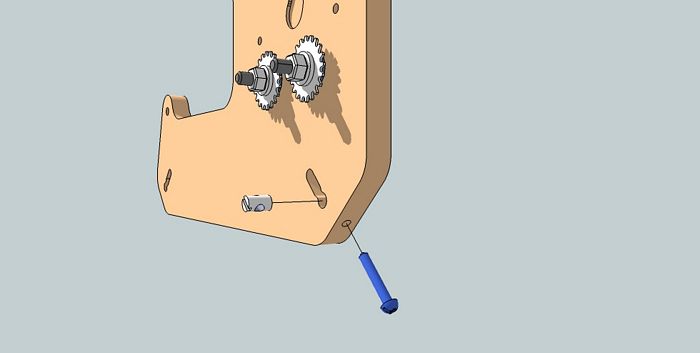

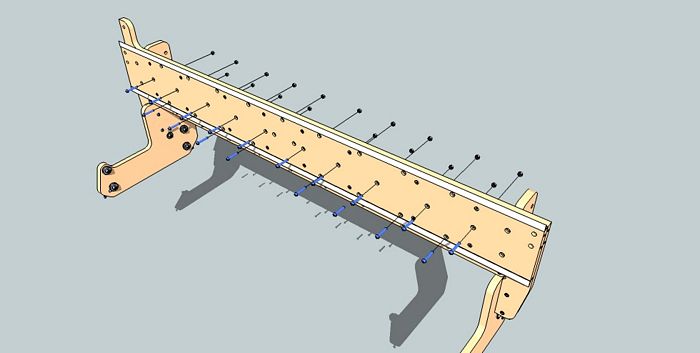

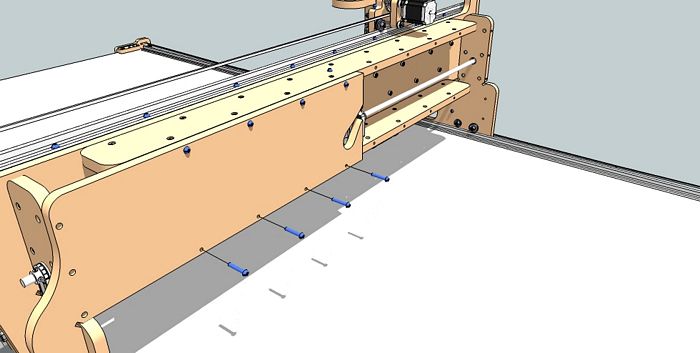

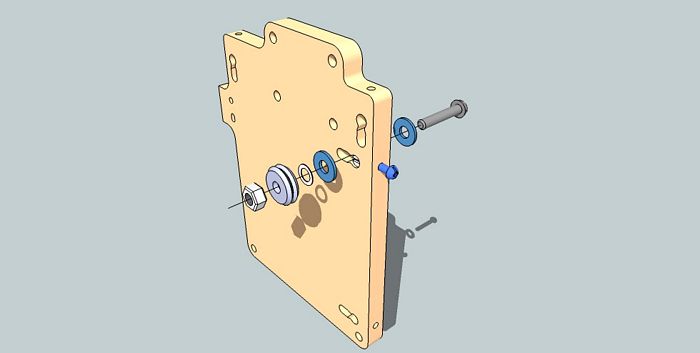

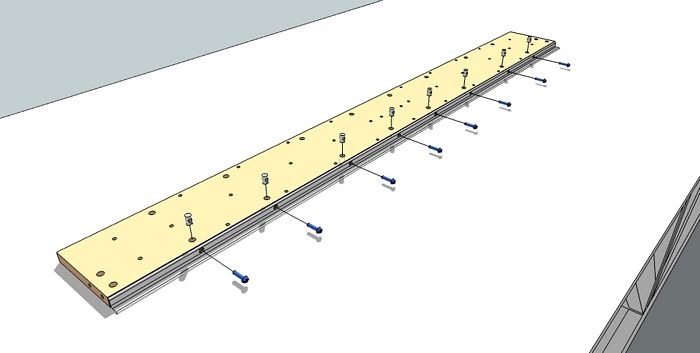

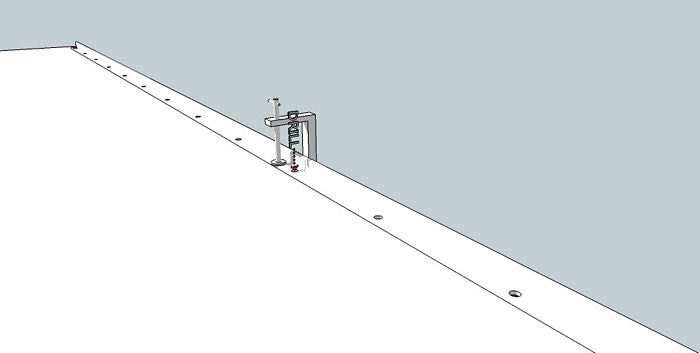

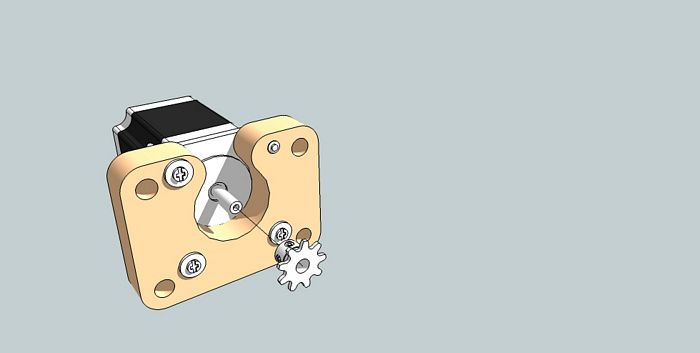

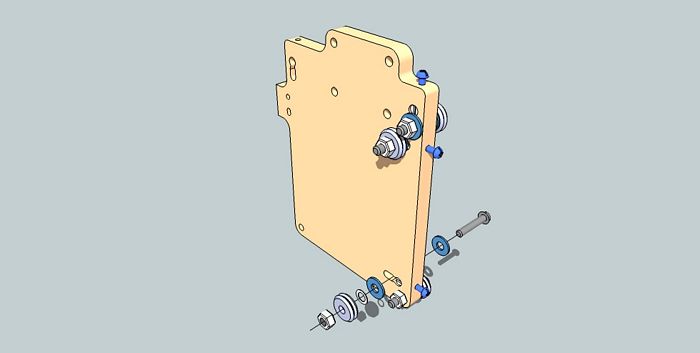

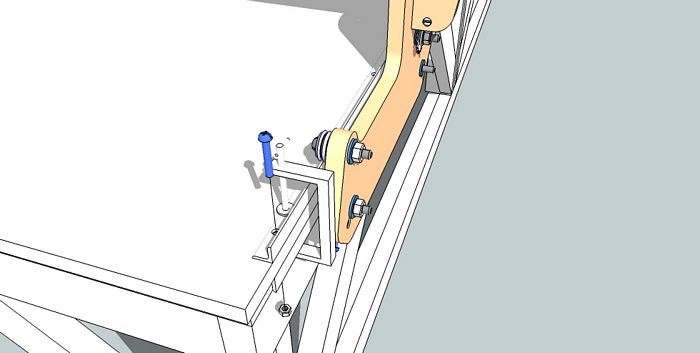

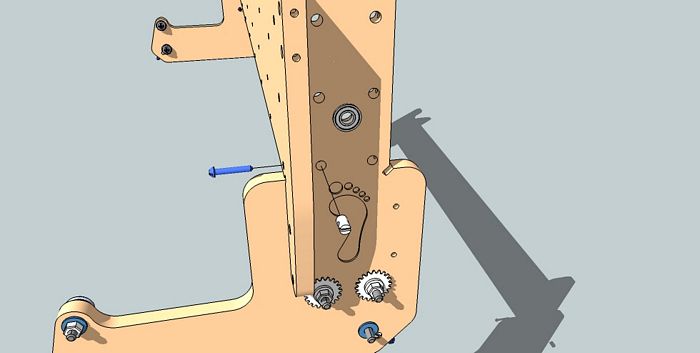

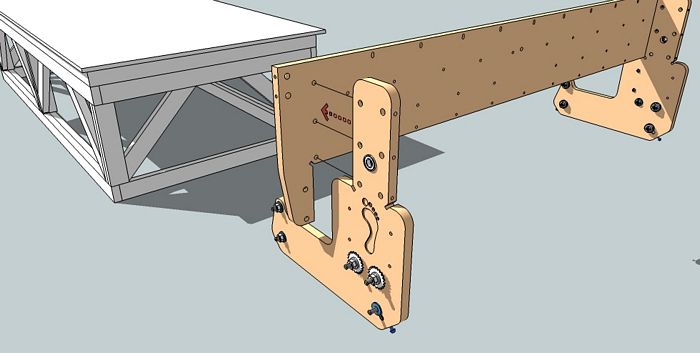

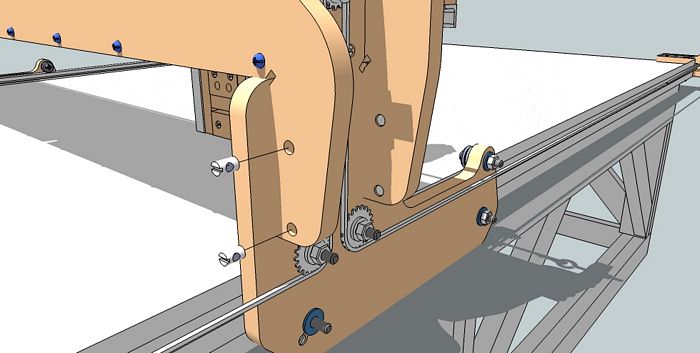

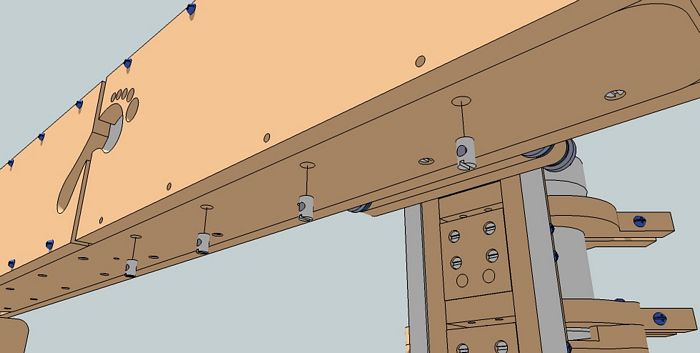

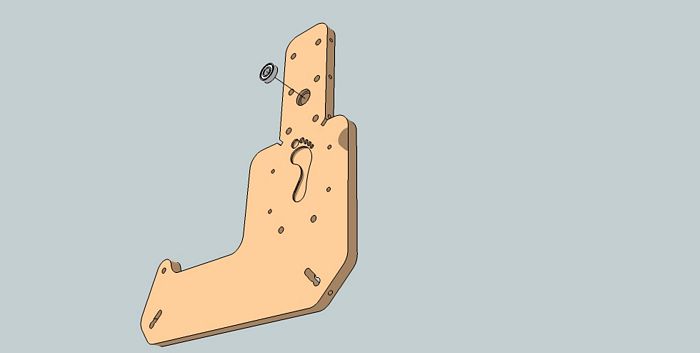

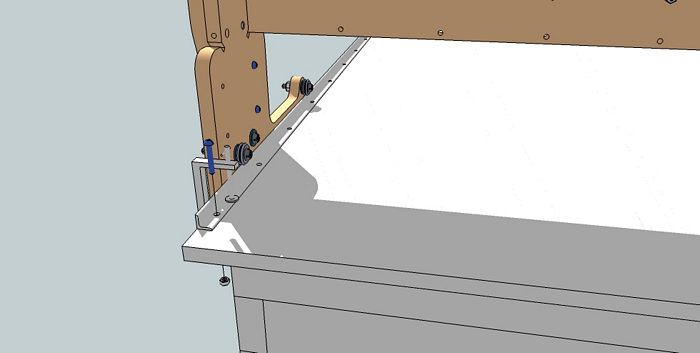

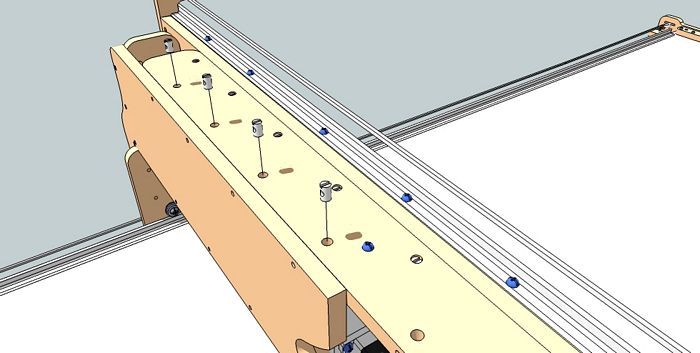

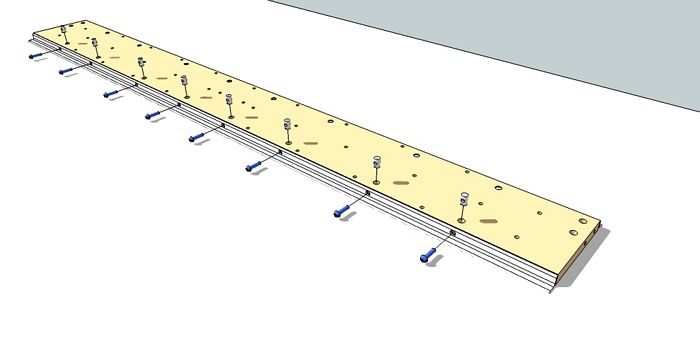

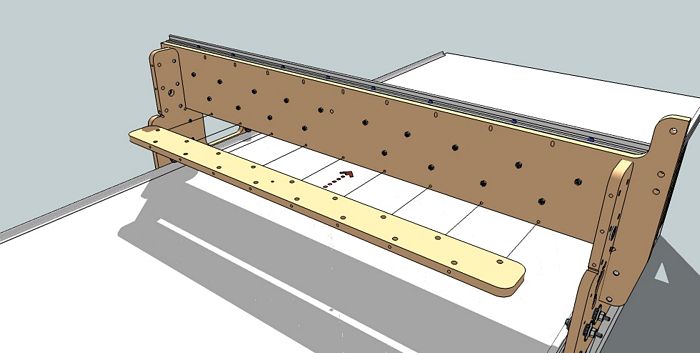

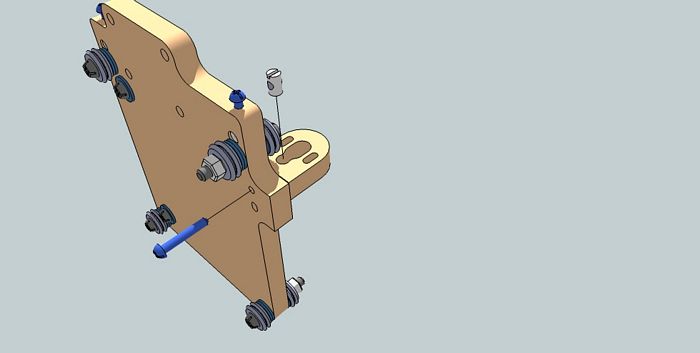

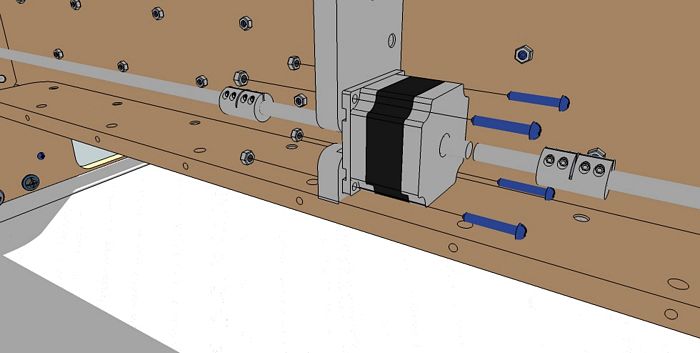

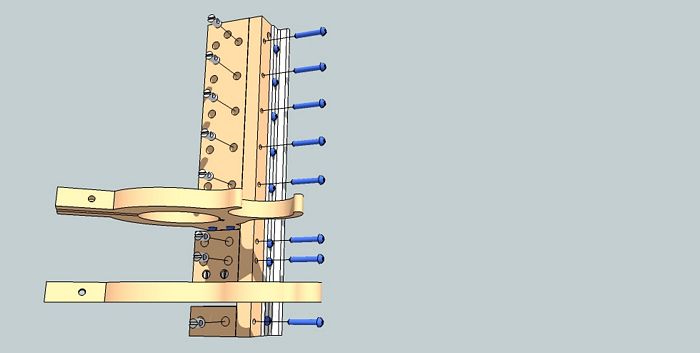

The blackFoot 4'x8' CNC machine has a cutting area of 4 feet (48 inches/1219.2 mm) by 8 feet (96 inches/2438.4 mm). The machine is intended to cut 4'x8' sheet material. Table Not Included. The blackFoot offers precise control using 3 axes of motion. The x and y axes are helped by roller chain mechanisms at a pitch of .25". The chain and sprocket combinations are ANSI #25 specification. The z-axis uses lead screw at 1/2"-10 TPI @ 5 starts for a travel of inch with 2 turns. Accuracy and smooth operation are maintained using an anti-backlash nut on the z-axis. The structure is very rigid and resists lateral and bending forces to keep the machine stable throughout the machining process. All blackFoot CNC machines can be customized to fit the router of your choice, but we strongly recommend using the 2.2kW Spindle with Inverter. Original Purchasing Guide (for reference) Basic Kit – For Router Included structure, hardware, mechanical components, aluminum rail, electronics, limit switches, parallel interface board. You assembled the machine yourself following the instructions located on the bottom of this page. Did not include: Table, Router or Spindle, Computer, Software, Bits (end mills) Basic Kit – with Spindle Included everything in the basic kit and a 2.2kW Spindle with 220V Inverter. Assembled Version – with Spindle Included everything in the basic kit – with 2.2kW Spindle. The gantry was assembled and shipped in a crate via freight carrier. You still needed to construct your own table for the gantry and install the aluminum rail on it.

Replacement parts for the blackFoot

Still running a blackFoot? These are the wear parts owners replace most often:

Upgrading the electronics? PoKeys57CNC or Ethernet SmoothStepper, with Mach3 or Mach4.
