4' x 8' Vertical Laser XL - Laser Cutter/Engraver

4' x 8' Vertical Laser XL - Laser Cutter/Engraver

Regular price $8,899.00 USD
Regular price Sale price $8,899.00 USD
Sale Sold out
Shipping calculated at checkout.
Title
Quantity

The Vertical Laser XL is no longer sold as a kit, and printed plans are no longer offered.

The full design is available as an instant digital download at a much lower price: Vertical Laser XL digital plans. We stock the laser tubes, power supplies, chillers, lenses, and mirrors to build it. This page is kept for reference.

The revolutionary Vertical Laser XL is our largest laser engraver. The lasing area is 4' x 8' (approximately 1200mm x 2400mm). The machine features an 80W CO2 laser tube and power supply to provide faster laser cutting ability.
Video: Introduction To The Vertical Laser XL

The Vertical Laser XL is a serious laser machine that pulls no punches. Start with a ridiculous 4’ x 8’ cutting area (hence the XL). Throw in a massive 80W CO2 laser tube. Equip with a laser control unit system. Then flip it upright because gravity be damned. You need space.

Technical Details

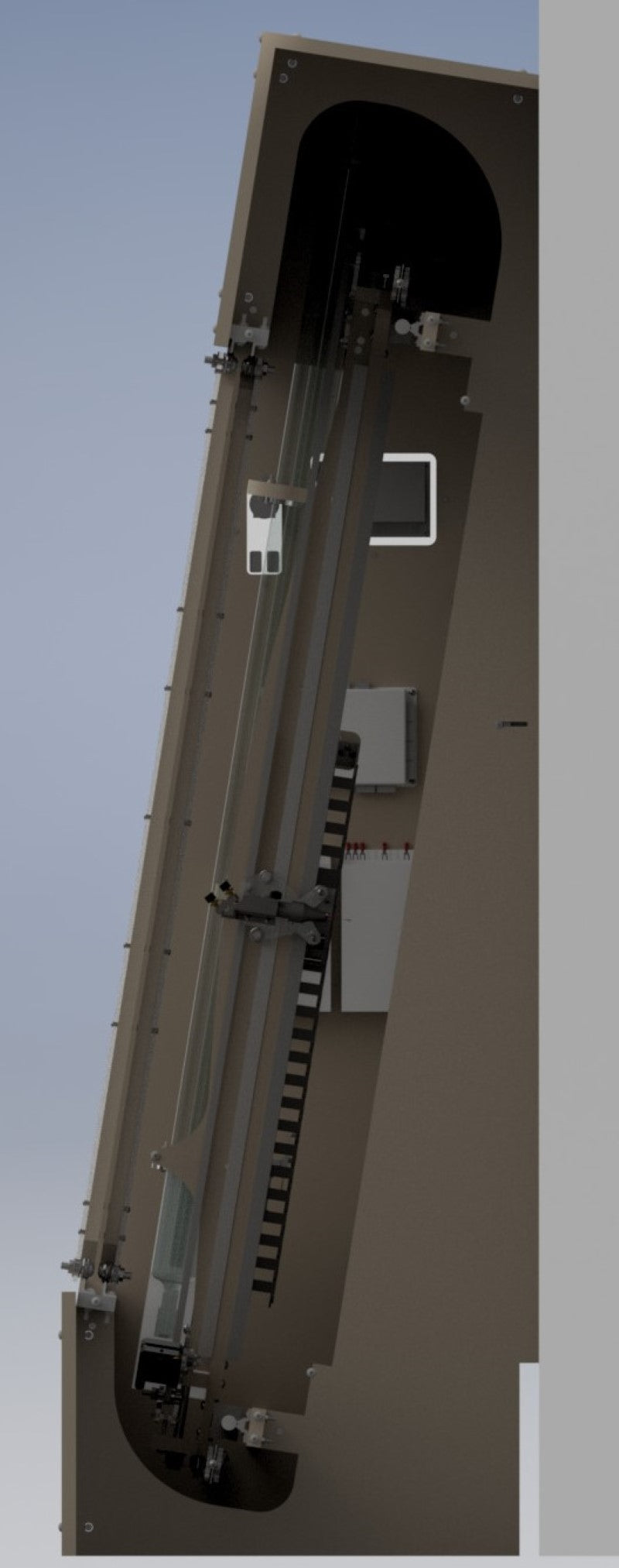

The vertical orientation of this machine provides a few advantages over a horizontal machine. It provides a large format work area with a much smaller overall footprint. The vertical orientation also helps contain toxic gases better, and reduces sagging issues with the gantry.

The VLXL is designed around an 80W C02 laser tube and 80W power supply to provide fast lasing speed, with room to upgrade to a 100W or 130W tube.

The VLXL features an integrated control unit, allowing you to import designs from standard programs like AutoCAD, Adobe, and CorelDraw.

What the original kit included (for reference)

  • Structure - All wood and plexi pieces for structural assembly
  • Electronics - NEMA 34 651 oz-in stepper motor, NEMA 24 425 oz-in stepper motor, 6 amp and 3 amp drivers for stepper motors. 36V power supply, 24V power supply. Laser Controller Interface (Controller and LCD Panel)
  • Laser Components - 80W CO2 Laser Tube, 80W Power Supply, 50.8mm laser focal lens, 25mm mirrors and mount
  • Hardware
  • Mechanical Components
  • Industrial Water Chiller
View full details
