NEMA 42 Stepper Motor (1586 oz-in 3/4" single shaft) 5.5 Amps
NEMA 42 Stepper Motor (1586 oz-in 3/4" single shaft) 5.5 Amps
Regular price
$169.95 USD
Regular price
Sale price
$169.95 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

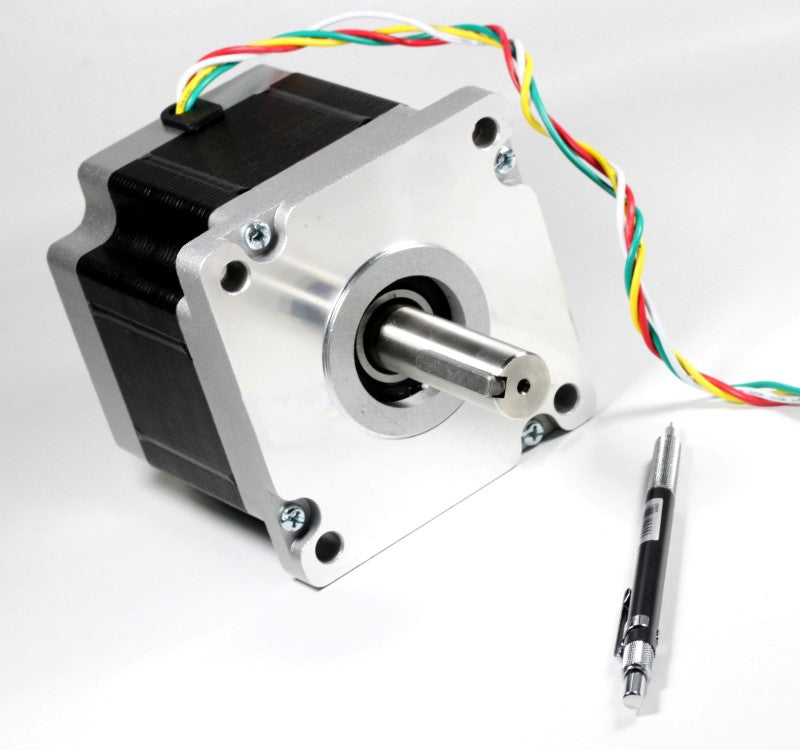

This NEMA 42 stepper motor is the largest and most powerful stepping motor we have carried to date. It features a super-sized 99mm frame and a whopping 1,586 oz-in of holding torque. This gigantic stepping motor is ideal for more heavy duty projects requiring a hefty amount of torque. With a current/phase of 5.5 amps, it can be driven by our 6.0 amp stepping motor driver. Technical Specifications:
- 1.8 degree stepping angle
- Current/Phase: 5.5 A
- Resistance/Phase: 0.9 ohms
- Holding Torque: 1586 oz-in

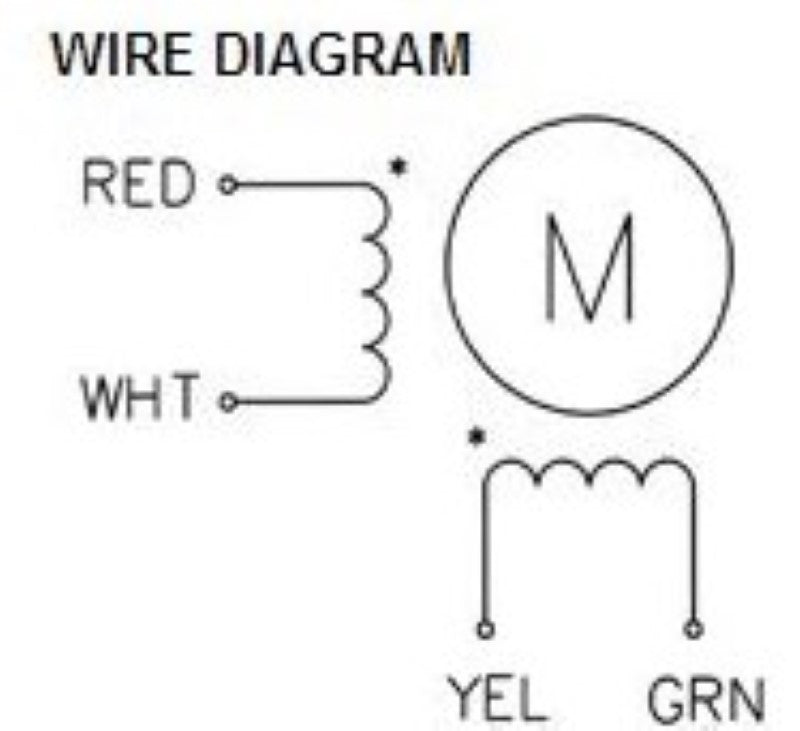

- Number of Leads: 4
- Rotor Inertia: 5500 g-cm2
- Weight: 11.02 lbs / 5 kg

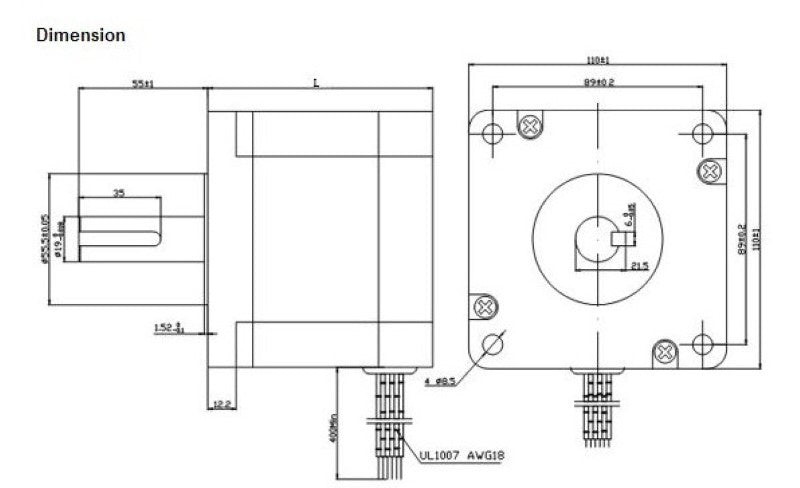

- Length: 99 mm
